NC Servo Roll Feeder

Quality product for coil feeding in Press Feeding Lines
Info Specification Video



LIGHT SERIES (Servo Feeder)

High Speed Series

High Speed Series with Pneumatic Pilot Release
High Speed Series with Pneumatic Pilot release mechanism is suitable for electrical motor stamping & electrical lamination mfg. industries. Special high frequency & high flow solonoid valves are using to achive pilot release at high speed of 24 to 30 mpm.


High Speed Series
Models Max Width in mm Max Thickness
Range
in mm
Max Velocity
in mm
PRSF-A-200-HSS 200 0.1-1.0 120
PRSF-A-300-HSS 300 0.1-1.0 120
PRSF-A-400-HSS 400 0.1-0.8 120

High Speed Series with Mechanical Pilot Release
High Speed Series with Mechanical Pilot release is suitable for electrical motor stamping & electrical lamination mfg. industries where line speed is uptil 40 mpm.
High Speed Series with Mechanical Pilot Release
Models Max Width in mm Max Thickness
Range
in mm
Max Velocity
in mm
PRSF-B-200-HSS 200 0.1-1.0 120
PRSF-B-300-HSS 300 0.1-1.0 120
PRSF-B-400-HSS 400 0.1-0.8 120


Top High Speed Series
In top High Speed Series, Feed and Pilot release are done by two separate servo motors. This enable to achieve desired line speed uptill 60 mpm with high accuracy.

Top High Speed Series
Models Max Width in mm Max Thickness
Range
in mm
Max Velocity
in mm
PRSF-B-200-HSS 200 0.1-1.0 200
PRSF-B-300-HSS 300 0.1-1.0 200
PRSF-B-400-HSS 400 0.1-0.8 200

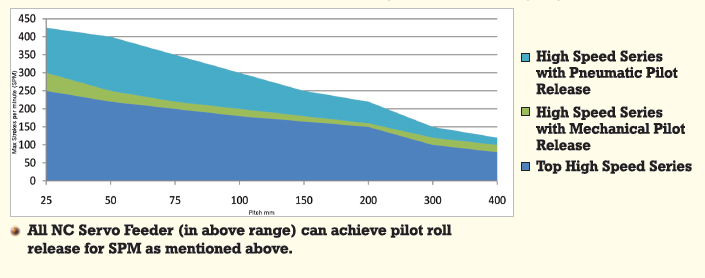

  High Speed Series Fedding Rates
  Max Stokes per minute in continuous running mode for a feeding angle of 180°

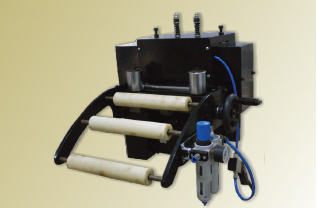

Normal Speed Series
Models Max Width in mm Thickn
ess
Range in mm
Max Thickness
with Max
Width in mm
Max Section in mm2 Max Velocity
in mm
PRSF-AA-200-ELS 200 0.1 2.0 1.5 300 90
PRSF-AA-300-ELS 300 1.5 1.0 300 90


Light Series (NC Servo Roll Feeder)
Light Series (LS)
Models Max Width in mm Thickn
ess
Range
in mm
Min  Max
Max Thickness
with Max
Width in mm
Max Section in mm2 Max Velocity
in mm
PRSF-A-200-LS 200 0.1 3.0 2.0 400 90
PRSF-A-300 LS 300 1.6 480 90
PRSF-A-400 LS 400 1.2 480 90




Mild Series (MS)
Models Max Width in mm Thickness
Range in mm
Max Thickness
with Max
Width in mm
Max Section in mm2 Max Velocity
in mm
    Min Max.
PRST-B-200-MS 200 0.3 3.5 3.0 600 90
PRST-B-300-MS 300 2.5 750 90
PRST-B-400-MS 400 2.0 800 90
PRST-B-600-MS 600 0.3 2.5 2.5 1500 90
PRST-B-800-MS 800 1.6 1280 90
PRST-B-1000-MS 1000 1.4 1400 90

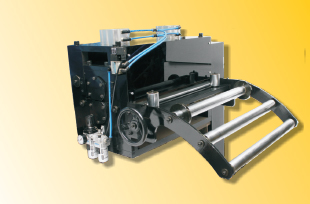

EXTRA MID SERIES (EMS)
Light Series (LS)
Models Max Width in mm Thickn
ess
Range in mm
Max Thickness
with Max
Width in mm
Max Section in mm2 Max Velocity
in mm
PRSf-Bh-300-EMS 300 0.3 4.0 4.0 1200 90
PRSf-Bh-400-EMS 400 3.0 1200 90

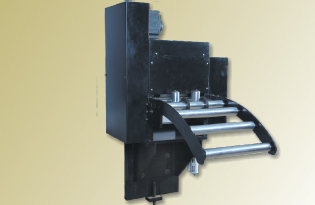

HEAVY SERIES (HS)

Light Series (LS)
Models Max Width in mm Thickn
ess
Range in mm
Max Thickness
with Max
Width in mm
Max Section in mm2 Max Velocity
in mm
PRSF-CH-300-HS 300 0.5 6.0 6.0 1800 90
PRSF-CH-400-HS 400 5.0 2000 90
PRSF-CH-500-HS 500 4.8 2400 90
PRSF-CH-600-HS 600 4.0 2400 90
PRSF-CH-800-HS 800 3.0 2400 90
PRSF-CH-1000-HS 1000 2.0 2000 90

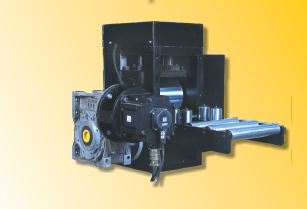

EXTRA HEAVY SERIES (EHS)

Light Series (LS)
Models Max Width in mm Thickn
ess
Range in mm
Max Thickness
with Max
Width in mm
Max Section in mm2 Max Velocity
in mm
PRSF-D-200-EHS 200 0.5 10.0 10.0 1800 90
PRSF-Dhh-400-EHS 400 8.0 2000 90
PRSF-Dh-600-EHS 600 6.3 2400 90
