3 In 1 Coil Processing Unit

Quality product for coil feeding in Press Feeding Lines
Info Specification




Better Accuracy

The Straightener Feeder is Motorised through one brushless servo motor & precision gear box.



Easy Cleaning

The large access apertures on the top & bottom make it easy to clean the work rolls, which effectively helps prevent scratch-marks on the material.



Equipment Performance: Advantages:

For 3-ton coils in 400 mm wide. 2.5 meter long one piece base.
Strip thickness from 0.5mm to 3mm. Easy and quick to start up.
Feeding Rate up to 100Spm. Transferable to another press.
Pitch accuracy: ± 0.15mm.





Easy Adjustments

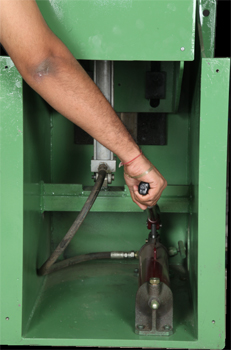

The passline height can be easily adjusted by using the hydraulic jack, & contributes to shorter setup times & better quality.





Easy Handling

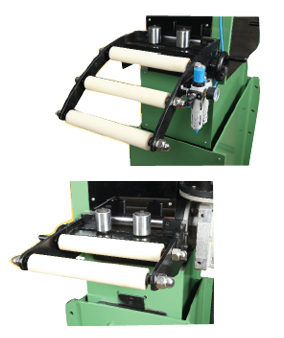

The straightener feeder entrance is equipped with Cascade Rollers & side width guides.

The straightener feeder exit is equipped with side width guides.

The uncoiler is equipped with slide-type side guides & pneumatic hold down

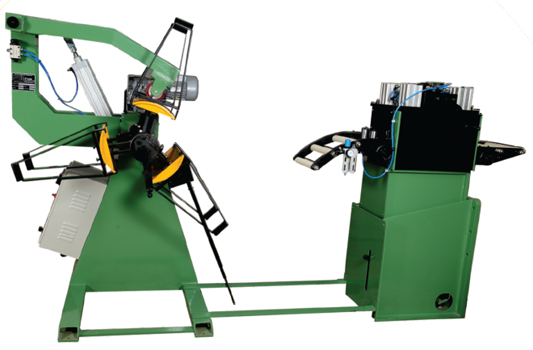

  PRESS ROOM AUTOMATION releases its rst “3 in 1”, which combines a decoiler and astraigthener-feeder driven via servo motor. It targets manufacturers seeking a simple, robust and safe press feeding line with decent performances.


Features:




Decoiler
Decoiler with variable drive & loop control system.
3 or 4 jaw self-centring manual expanding mandrel of welded and stabilized steel.
Rotation jog mode from main control box.
Pneumatic Hold-down (Optional snubber and peeler assembly for threading is available on request).
6 quick removable coil retaining arm-keepers, adjustable depending on the strip width.



NC Servo Straightener Cum Feeder




Stabilized Steel frame construction.
Cascade Rollers @ Entry.
Gear driven feed roll to ensure non-slip positive feeding.
Straightener Head consisting of 7 nos Straightening Rollers, 1 Pair of Pitch Roller & 1 Pair of Feeder rollers are provided at entry & exit respectively.
All upper rolls are individually adjusted with mechanical leadscrews and bevel gearings. The level of upper rolls penetration is shown by position indicators.
Power transmission to the other straightening rolls via precision spur gears.
Pneumatic actuated lifting of the set of upper rolls in synchronism with the forming machine to allow entry & self-centring of the strip when working with dies with automatic centering devices (pilot release).
Exit Width Guide Assembly.
Permanently sealed precision roll bearings, no lubrication required.

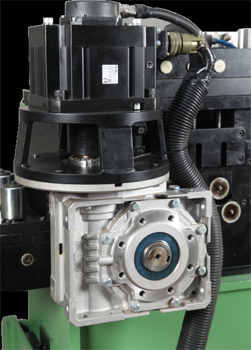

Motorisation through one brushless servo motor & precision gear box.
Crocodile opening of the head by lever, for safe & easy roll cleaning, and easy strip insertion.
Manual height adjustment by hydraulic jack +/- 50 mm of pass-line.

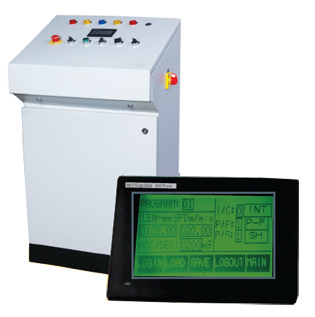

Features of Control Panel


Feed Length : 0 to 99999.999 mm
Speed : 1 to 50 mpm
Acceleration / Deceleration : 1 to 100%
Part number : 1 to 99
Length setting adjustment (from -0.1 mm to +0.1 mm) with 0.01 mm increment
Servo motor with built in resolver for feed measurement
Press mode : single stroke or continuous operation
Feeder before Press (F-P) or Press before Feeder (P-F) selection
Main switch / Manual operation button / Emergency Stop
Manual jog programmed feed length for easier tool setting
Potentiometer for speed regulation of Decoiler
Diagnosis and display of error messages
