Single Component Leveller

Quality product for coil feeding in Press Feeding Lines
Info Video

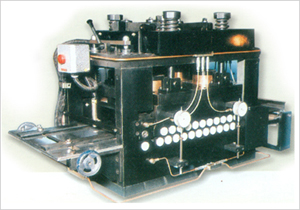

Automatic PLC Controlled Part Leveller for Press Feed




Component Leveller
Introduction
In the range of sheet metal coil feeding automation, Press Room has been redefining the industry standards & have brought out precision levellers for straightening of coils, strips, components, sheets.

Why Press Room Levellers are your Profitable Decision...
• Field Experience of more than 15 years.
• Proper Engineering & Design
• Correct Manufacturing process
• Rigid frame work
• Proper material selection &  machined to   highest dimensional accuracy.
• Right rollers material & right process of     manufacturing.

Component Leveller
• Best machine rigidity requiring no special foundation.
• Easy access to parts for  cleaning & maintenance.
• Proper operator training.
• Trained field  technicians to support you for service & application. application.
• Ease of parts/spares availability.
• Single Person handling.
• Free test trials for your components at our test lab.

Component Leveller
Application of parts Levelling

• Stampings •Motor laminations
• Coil laminations • Control panels
• Furniture panels• Saw blade blanks
• Clutch plates • Microfilm spools
• Brake plates • Bi-metal Bearings
• Computer parts • CNC Turet punch parts.
.......................

Standard Features
 * Four-high design.
 * Manually adjustable back-up rolls
 * Small work rolls, hardened/ground/polished
 * All Straightening rolls are Powerd.
 * Integral universal geared drive.
 * Dial guage roll position indicator.
 * Oil bath gear case, sealed roll bearings,
 * positive lubrication.
 *Bolted rugged main frame in one torque  resisting assembly.
 * Main drive motor for 440V, 3ph, 50 cycle.
 *“Run, Jog-Reverse, Stop” controls, Fusible disconnect..
 *Automatic central lubrication of work roll bearings.
 * Adjustable side guide.
 * Straightening accuracy+/- 0.01 to 0.05 is achieved
 * Depending on input component conditions, Raw material & hardness, roll setting, thickness  variation of components.
 * 17/19/21 Straightening rolls.
 * Straightening roll diameter from 8mm to 200 mm to cover a wide range of jobs.
Automatic PLC Controlled Part Leveller for Press feed equipment

Automatic PLC Controlled Part Leveller for Press feed equipment

Component Leveller
Optional Features
* Five or six high configuration for one or two side    special polished sheet stock, in place of four-high
* Chrome plated work rolls.
* Base for larger pass line
* Slant base for press coil feed operations.
* Variable speed drive and controls.
* Loop control system.
* Powered work roll positioning in place of manual.
* Remote work roll position indicators.
* Cascade rolls at entry or exit.
* Powered pinch rolls.
* Special features on request.
* Motorised adjustment of rolls with digital display.
* 25/31 Straightening rolls.
* CNC Controlled levellers offered.
