Precision Straightener

Quality product for coil feeding in Press Feeding Lines
Info Specification Video

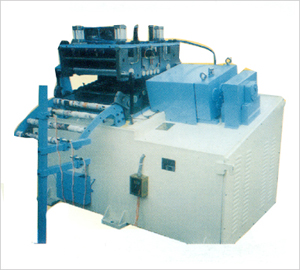

Precision Straightener
Precision Straightener
600 (W) X 0.5 - 3.0

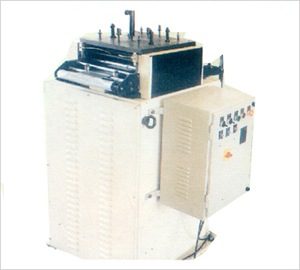

Precision Straightener With Openable Head
300 (W) X 0.35 - 1.5

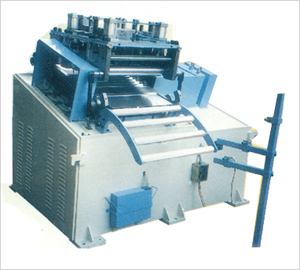

Precision Leveller
Precision Straightener
Precision Straightener

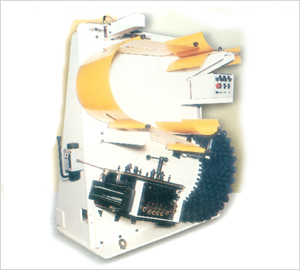

300 (W) X 0.3 - 1.0 mm  S loop Precision Leveller
For High Speed Stamping Presses




A Precision Straightener is precision equipment for achieving higher degree of flatness & larger thickness range for straightening.

Each Straightening Rolls have a set of backup rolls for prevention of roll deflection. They normally  are used on High Speed Pressure and have variable drive with loop control. Optionally the Top Blank are openable for cleaning purpose. Two sets of Pinch Rolls are provided both at entry and exit for large pull at high speeds.

The control panel with A.C. frequency variable drive would control the feeding at high speed with a proper loop.

.......................
