 Quality product for coil feeding in Press Feeding Lines
Info Specification Video

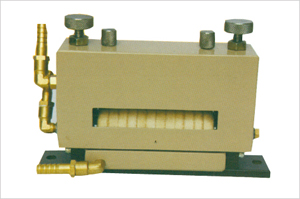

JSM Roller Lubricator
JSM Roller Lubricator With
JSM Roller Lubricator for Coil Lubrication

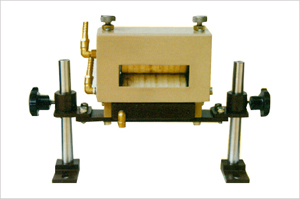

JSM Roller Lubricator With
Height Adjustment Stand

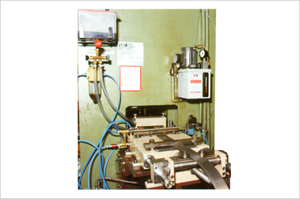

JSM Automatic Coil Stock Lubrication System

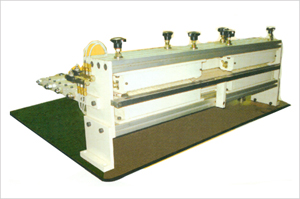

JSM Coil Stock Lubrication System
JSM Automatic Coil Stock Lubrication System for Sheet Lubrication
JSM Coil Stock Lubrication System


Coil Stock JSM COIL STOCK LUBRICATION SYSTEM for Press feed equipment

A Right Lubrication System plays a very important role in any metal forming application. JSM coil stock lubrication system are desgined to lubricate coil / strip & Die irresctive of type and thicness of material. They can accommodate any material movement (speed), crown, camber or even unstraightened stock.

JSM Coil Stock Lubrication System are designed in modular way and have similar features between smallest unit to largest units. Due to modular design sizes uptill 1800mm can be build irrespective of material, speed, thickness. They are available in 3 basic models.

1) JSM Gravity Coil stock lubrication system Any kind of liquid libricant is evenly distributed to the absorbent Rollers. Oil flow to each Roller is individually controlled by metering valves, which are installed on a transparent reservoir tank that to indicate oil level.

Adjustable tension speings help to apply the adequate oil film by supplying enough pressure to squeeze off any excess which is then recycled to the unit.
2) JSM Automatic Coil Stock Roller Lubrication System At the heart of the system is a positive displacement lubricant pump which precisely dispeness the lubricanr to the Rollers. The output of this pump is fully adjustable, so it can be tailored to any opertion. The davantage of the system is that it supplies the exact amount of lubricant required for any particular operation.
This eliminates the mess and waste associated with in - die spray system and less overhead, not to mention the savings due to reduced tool wear, improved part quality, and increased production retes.


3) (a) JSM Automatic Programmable Sheet Lubrication System & (b) JSM Automatic Programmable Spray Application System for In - Die Lubrication for Rolling Mill. This is a system, which combines roller lubricator at the entry of coil stock and with downstream spray nozzle. The extra spray nozzles apply just the right amount of lubricant precisely where its needed at critical areas in the Die on the strip. The System is controlled by PLC.


.......................

Applications   Benefits
*
Punching
*
Reduced Oil Consumption
*
Stamping
*
Inceased Die life
*
Fine Blanking
*
Improved Part Quality
*
Deep Drawing
*
Increased Production Reates
*
Roll Forming
*
Decreased Part Cleaning
*
Cold Extrusion
*
Cleaner Work Area
*
Appllication of Rust Preventives and Other Proactive Coatings
*
Lower Maintenaance then any other system
*
Multi - Sildes punching / Forming.
*
Fluid Recycling

*
Less Fluid Management Concerns
MODELS OF JSM GRAVITY COIL STOCK LUBRICATION SYSTEM
Models Width Thickness
GLS-10 100 mm 0.1-3.0 mm
GLS-15 150 mm 0.1-3.0 mm
GLS-20 200 mm 0.1-3.0 mm
GLS-30 300 mm 0.1-3.0 mm
